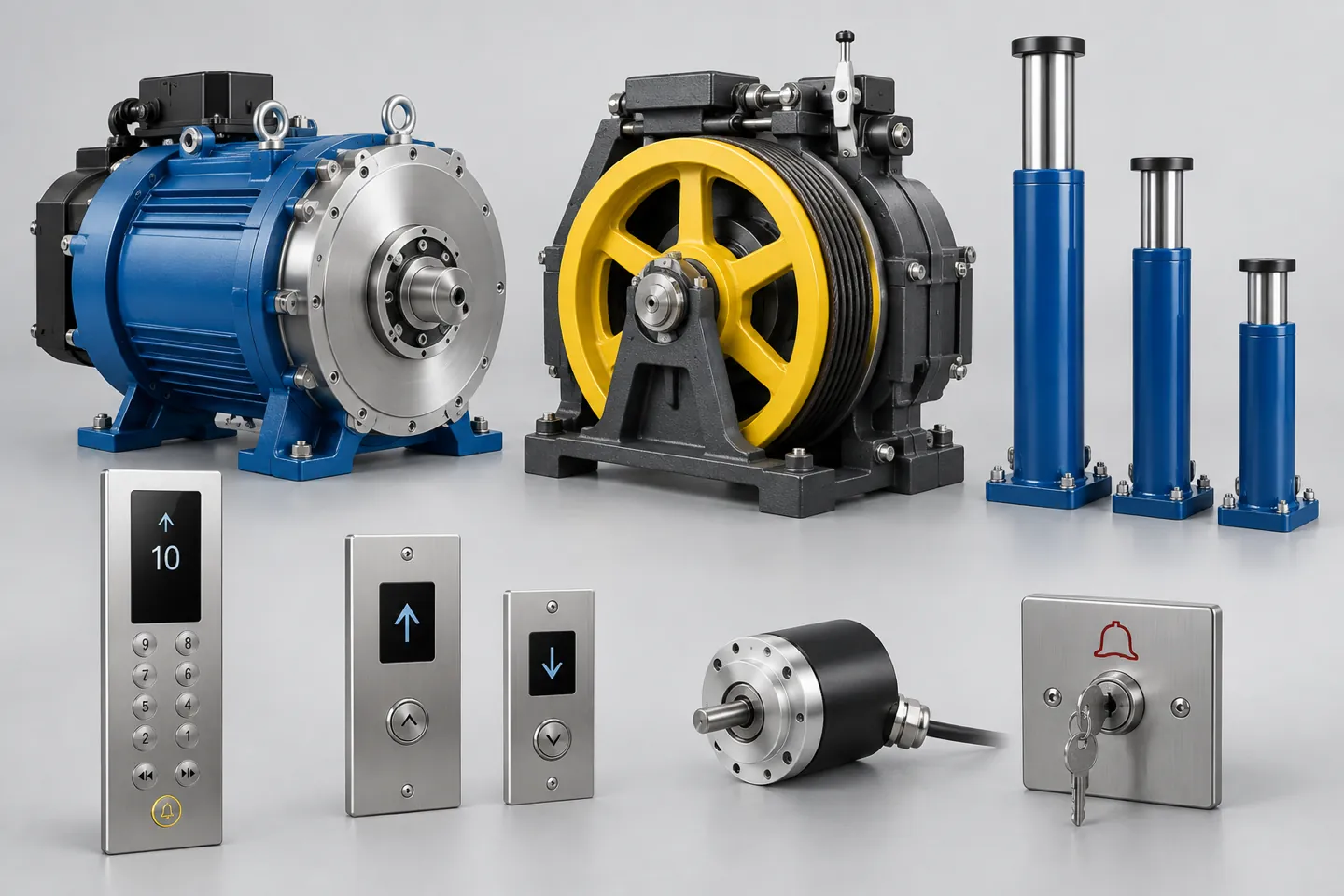

MRL gearless machines
- Compact gearless drive configurations
Engineering studioUnderstand the system.
Understand the system.
Plan the possibilities.
Interactive diagrams and catalogue dimensions for early project discussions. Final installation drawings follow a site survey and engineering approval.
Machine-roomless elevator system
More room for your vision.
Machine-roomless configurations combine capacity, speed and dependable operation. The brochure describes worm and thrust-bearing construction for load capacity, lubrication for service life and rubber isolation mounts to reduce vibration. Machine selection is confirmed for each configuration.
Choose a floor to follow the cabin movement.
4 persons · car 850 × 1050 mm · shaft 1350 × 1450 mm
| Persons | Brochure column* | Car width A (mm) | Car depth B (mm) | Shaft width C (mm) | Shaft depth D (mm) |
|---|---|---|---|---|---|
| 4 | 272 | 850 | 1050 | 1350 | 1450 |
| 6 | 408 | 1100 | 1150 | 1600 | 1550 |
| 8 | 544 | 1100 | 1400 | 1600 | 1800 |
| 10 | 680 | 1200 | 1550 | 1700 | 1950 |
| 12 | 816 | 1300 | 1650 | 1800 | 2050 |
| 15 | 1020 | 1400 | 2000 | 1900 | 2500 |
| 20 | 1360 | 1550 | 2400 | 2100 | 2900 |
*The source labels the second column “Headroom clearance (A)” but gives values 272–1360. This label is inconsistent with a headroom dimension; values are preserved as printed and must be clarified with SMB before use. The animated shaft is an explanatory diagram, not an installation drawing.
Machine-room traction
- Traditional gearless traction machines for MR applications
Vibration control
- Lubrication and rubber isolation mounts for smooth operation
Escalators & moving walks
Precision in every rise.
6 m maximum rise35° inclination0.5 m/s speed
Animated tread path illustrates direction of travel.
| Step A (mm) | Span L (mm) | Min LP (mm) | LU (mm) | LL (mm) | LS (mm) | NU* (mm) | HL+ (mm) | RU (kN) | RD (kN) |
|---|---|---|---|---|---|---|---|---|---|
| 1000 | 1.428H + 4793 | 4200 | 2477 | 2316 | 5761 | 267 | 267 | 5.11L + 7 | 5.11L + 2.3 |
| 800 | 1.428H + 4793 | 4200 | 2477 | 2316 | 5761 | 267 | 267 | 4.41L + 7 | 4.41L + 2.3 |
| 600 | 1.428H + 5293 | 4200 | 2977 | 2316 | 6261 | 767 | 267 | 3.76L + 7 | 3.76L + 2.3 |
Dimensions depend on local requirements, codes, machine and drive selection; replacement installations may need adapted dimensions. L in the load expressions requires unit confirmation. The brochure table prints “NU*” while its note refers to “HU and HL”; those source labels are retained for review.
HU/HL values are stated for a 930 mm balustrade. Minimum S: 1056 mm indoors; 1256 mm outdoors. Lifting-hook capacity: 50 kN. Hook offset: 100 mm. Side drawing also marks safety fence, wedge guard, drainage, power supply, RU/RD supports, 900 mm rail height, 580 mm lower return, H−2800 clearance and 890/657 inclined clearances.
Custom designs, finishes and lighting can complement the architecture. Applicable safety and performance standards are confirmed for the project.
Escalator plan & landing details
The supporting structure.
| Step A (mm) | Handrail centre B (mm) | Escalator C (mm) | PV width D* (mm) | Trose width E* (mm) |
|---|---|---|---|---|
| 1000 | 1247 | 1540 | 1620 | 1300 |
| 800 | 1044 | 1340 | 1420 | 1297 |
| 600 | 841 | 1140 | 1220 | 1094 |
*“PV” and “Trose” reproduce the source headings. Confirm intended pit/truss terminology and dimensions before construction. Clear floor access at each landing: C × 2500 mm or 2C × 2000 mm. Plan includes wedge guard, drain and power supply.
Steel plate support
Anti-vibration support
Upper/lower landing support details are symmetrical. Elastic material fills the gaps. Steel plate: 30 × 180 × D; fixing bolt: Φ16 × 150. The support nose and bearing face must be level. Steel detail: 155/95 mm; anti-vibration detail: 175/145 mm; horizontal offsets: 200/40 mm. Drawings are recreated for explanation and are not construction documents.
